1. Product Introduction
Basic
Information:

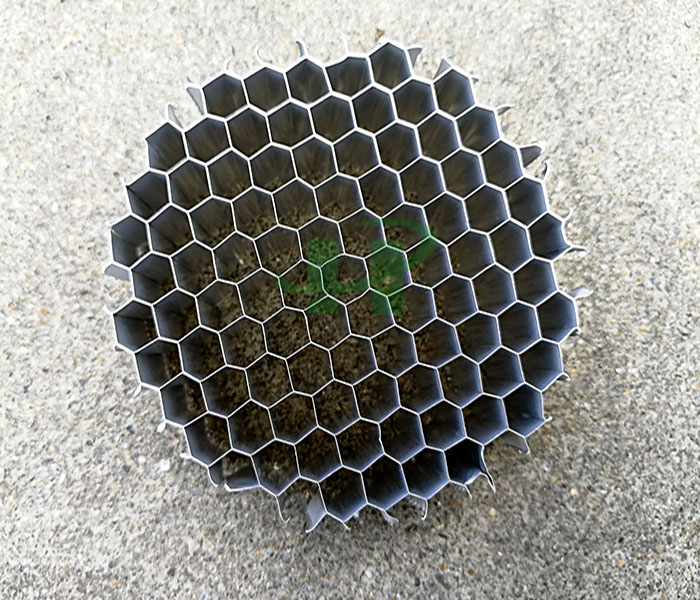

The aluminum honeycomb core is composed by
multi-layer aluminum foils, honeycomb is formed after fully expanded. Hongzan
aluminum honeycomb core has sharp and clear hole surface, and it is suitable
for adhering to high grade panels as well as other purposes.
Hongzan aluminum honeycomb meets aerospace
grade, is a lightweight endurable core materials which offers superior strength
and corrosion resistance over commercial grade aluminum honeycomb. Meet all the
requirements of MIL-C-7438.
Specification:

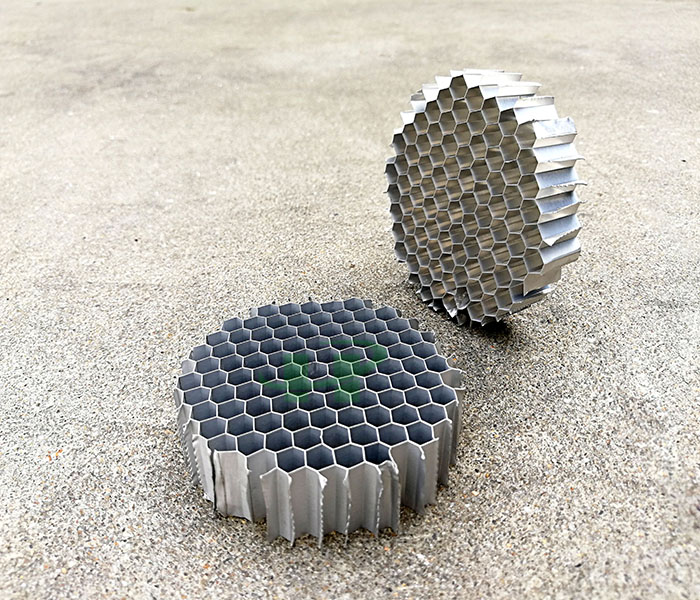

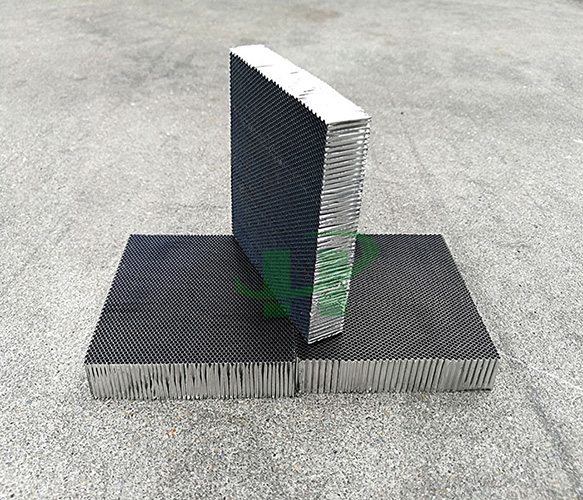

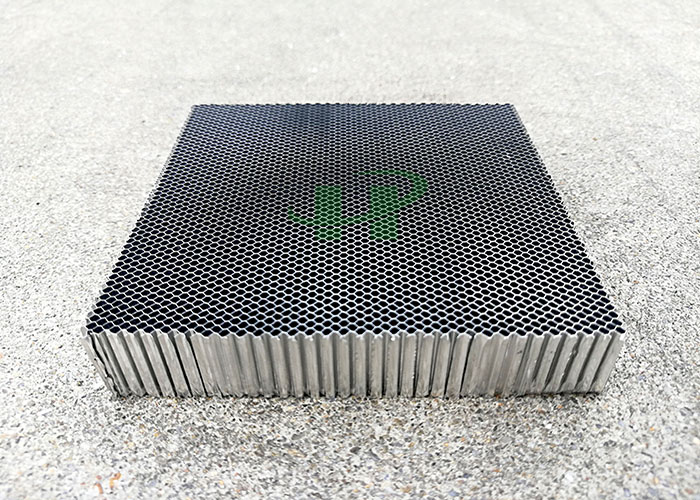

Hongzan produce mainly two types of aluminum honeycomb core: Micro-aperture aluminum core and Normal aluminum core.
Supplying forms: 1. For normal aluminum core: unexpanded block form and is stretched out / expanded into a sheet on-site.
2. For micro-aperture aluminum core (cell size is smaller than 2.5mm): expanded form
|
Aluminum Foil Material |
A1100, A3003, A5052, A3104 |
|
Avaliable Foil Thickness |
0.04-0.15 mm |
|
Node |
1-20 mm |
|
Diameter/Cell Size |
1.7-35 mm |
|
Core Thickness/Cutting Height |
3.5-200mm |
|
Shape |
rectangle, triangle, rhombus, trapezoid |
|
Regular Surface Treatment |
Powder Coating, Anodized, Electrophoreses, etc. |
|
Applications |
network for traffic guidance light, crystal lattice for electric heater, laser-beam cutter panel for testile machine, separator for illmination, guidance for water and gas purification, cooling agent carrier for air conditioner, refrigerator and air purification, shielding screen, heat insulation screen, etc. |
|
Customerization(MTM) |
Yes (color, surface texture, size, shape, pattern, etc.) |
Technical Data:

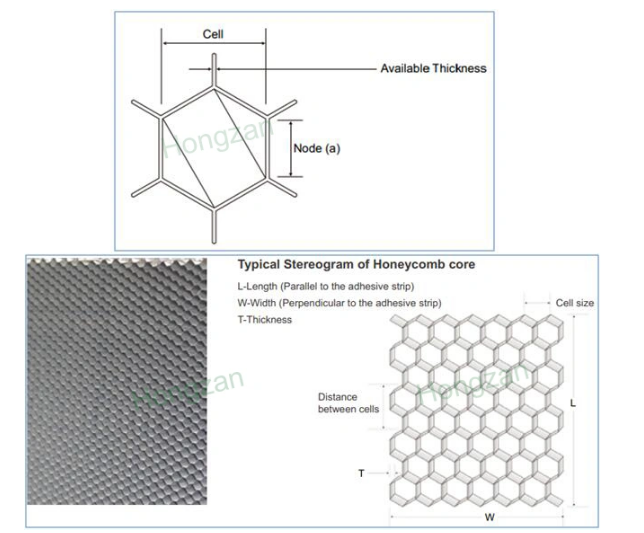

Regular Sizes and Max. Expaned Sizes of Aluminum
Honeycomb Core:
|
Node |
a=4 |
a=5 |
a=6 |
a=7.5 |
a=10 |
a=12 |
a=15 |
a=20 |
|
Cell Size (inch) |
1/4 |
1/3 |
3/8 |
1/2 |
3/4 |
4/5 |
1 |
1 |
|
Max Sizes (Length * Width) (mm) |
1800*3100 |
1800*4000 |
1800*4600 |
1800*6000 |
1800*7500 |
1800*9000 |
1800*12000 |
1800*15000 |
|
Model of Aluminum Foil Thickness (mm) |
0.04, 0.06 |
0.04, 0.06 |
0.04, 0.06 |
0.04 - 0.06 |
0.04 - 0.06 |
0.04 - 0.06 |
0.04 - 0.06 |
0.04 - 0.06 |
Flat Wise Compressive Strength & Shear Strength:
|
Density (kg/m3) |
Aluminum Foil Thickness / Node (mm) |
Mechanical Features under Room Temperature (Mpa) |
||
|
Average Compressive Strength |
Longitudinal Sheer Strength |
Transverse Shear Strength |
||
|
27 |
0.03 / 5 |
0.53 |
0.44 |
0.24 |
|
31 |
0.04 / 5 |
0.66 |
0.53 |
0.30 |
|
33 |
0.03 / 4 |
0.73 |
0.58 |
0.33 |
|
39 |
0.04 / 4 |
0.98 |
0.75 |
0.43 |
|
41 |
0.05 / 5 |
1.07 |
0.8 |
0.47 |
|
44 |
0.03 / 3 |
1.18 |
0.89 |
0.52 |
|
49 |
0.06 / 5 |
1.43 |
1.03 |
0.60 |
|
52 |
0.04 / 3 |
1.60 |
1.15 |
0.67 |
|
53 |
0.05 / 4 |
1.65 |
1.18 |
0.69 |
|
61 |
0.06 / 4 |
2.07 |
1.48 |
0.83 |
|
66 |
0.03 / 2 |
2.39 |
1.7 |
1.0 |
|
67 |
0.08 / 5 |
2.45 |
1.74 |
1.02 |
|
68 |
0.05 / 3 |
2.50 |
1.78 |
1.04 |
|
77 |
0.04 / 2 |
3.10 |
2.18 |
1.25 |
2. Application
Aluminum Honeycomb Core is widely used in electronic
and industrial field which is including as below.
· Crystal lattice for electric heater
· Laser-beam cutter panel for textile machine
· Network for traffic guidance light
· Separator for illumination
· Guidance for water and gas purification
· Cooling agent carrier for air conditioner
· Refrigerator and air purification
· Screen printing panel
· Shielding screen
· Heat insulation screen
3. Package Details

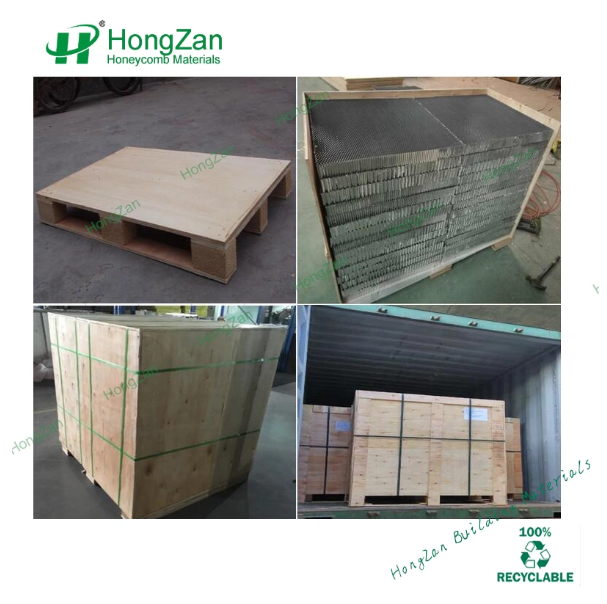

Hongzan will use standard export packages--wooden crate which will largely protect the products well during land/sea/air/train transportation. Customized package requirements are available.
4. Certificates
Hongzan has obtained international recognized
certificates and test reports for aluminum honeycomb panel related to Fire
rate, sound insulation, and so on, E.G.:
1), ISO 9001:2008;
2), A class fire rate by Lloyd's
( Marine Association) ;
3), BS 476 ,475 by TUV PSD Singapore;
4), EN13501-1 by ITS;
5), ASTM by ITS.
