1. General introduction of our Aluminum Honeycomb Panel (AHP)

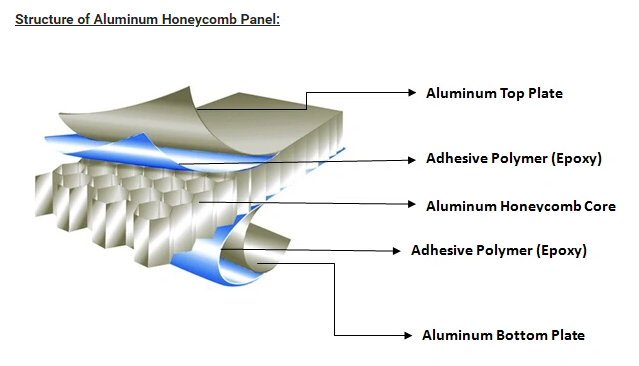

Base Structure
Main Advantages
|
1 |
Sound Insulating, Heat Insulation, Heat Preservation |
|
2 |
Fireproof Properties: A1/ A2/ B1 |
|
3 |
Super Flatness, Rigidity and Durable |
|
4 |
Moisture Resistance, Corrosion Resistant |
|
5 |
Light weight and energy saving |
|
6 |
Environmental recyclable |
|
7 |
Easy installation |
Technical Data
|
Technical Data Of HONGZAN Honeycomb Panels |
|||
|
Testing samples: |
|||
|
Thickness |
20mm |
25mm |
|
|
Aluminum Top Plate |
1.00mm |
||
|
Aluminum Bottom Plate |
1.00mm |
||
|
Weight (kg/m2) |
7.4 |
7.8 |
|
|
Mechanical Property: |
|||
|
Inertia Moment I(cm4/m) |
19.85 |
31.67 |
|
|
Section Modulus W (cm3/m) |
19 |
24 |
|
|
Rigidity E.I (KN cm2/m) |
139000 |
2217000 |
|
|
Aluminum profile |
AA 5754A(ALMg3) |
||
|
Modulus of Elasticity (N/mm2) |
70000 |
||
|
Tensile Strength of facing panel (N/mm2) |
Rm ≥ 220 |
||
|
0.2% Yield Stress(N/mm2) |
Rp0.2 ≥ 130 |
||
|
Extensibility (EN485-2:1194) |
A50 ≥ 8 |
||
|
Aluminum linear thermal expansion |
2.4mm/m when the temperature difference is 100oC |
||
|
Surface decoration layer |
PVDF Spray Baking finish |
||
|
Glossiness (original Data) |
30-40% |
||
|
Hardness of pencil |
HB-F |
||
|
Core of Honeycomb: |
|||
|
Size of honeycomb |
1/4''(6.3mm) |
||
|
Density |
About 80kg/m2 |
||
|
Compression strength (MILL-STD-401) |
4N/mm2 |
||
|
Function Of Acoustics: |
|||
|
Data of sound absorption As |
0.05 |
||
|
Factor of sound insulation According to ISO717-RW |
23 |
25 |
|
|
Function Of Heating: |
|||
|
Data of Heat Conduction λ* (w/m2k) |
2.25 |
2.7 |
|
|
Data of Thermal Insulation R(1/m) |
0.0089 |
0.0093 |
|
|
Data of Heat Transmission U(k) (w/m2k) |
5.59 |
5.575 |
|
Specifications
|
Total Thickness |
General: 6mm,12mm,15mm,20mm,25mm,30mm Range: 6mm – 500mm |
|
Top / Bottom aluminum plate thickness |
General: 0.5mm,0.7mm,1.0mm Range: 0.4mm – 3.0mm |
|
Size |
General: 1.2m X 2.4m Maximize: 2m X 10m |
|
Surface texture |
None, RAL color, Wood like, Stone like, Smooth, Rough, etc |
|
Surface Treatment |
Spray, roller-coating, wire-drawing, composited with wood slice, ceramics slice, marble slice, PVC,HPL,FRP, etc |
|
Edge Processing |
Edge closed or Edge Open |
|
Perforation |
Yes(customized) |
|
Customization |
Yes (color, surface texture, size, shape, pattern, etc. ) |
|
Suggestion |
1. For interior wall (PE coating): Range from 8mm to 20mm (top plate: 1.0mm; Bottom plate: 0.7/0.8mm)
2. For exterior wall (PVDF coating): 15mm, 18mm, 25mm (top plate: From 1.0mm to 1.5mm; Bottom plate: From 0.7mm to 1.0mm) |
Application:
Curtain wall; exterior & interior decoration, ceiling & flooring, partitions, door & cabinet, lift & elevator; train & high speed subway; luxury ship & vehicle, etc.
Some samples:
